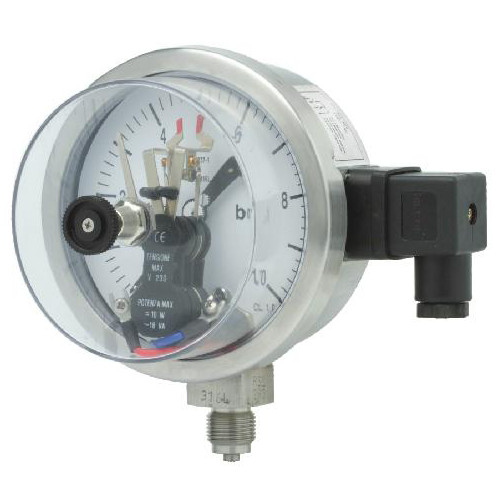

• Dial Size :DN100 / DN150
  • Range :-1 to 0 , 0-1 to 0-1600 Bar
  • Accuracy : ± 1% / CL 1 , Reference Standard : EN837-1
  • Mounting :Bottom / Lower Back with Doom type window
  • Process Connection :1/4″ / 3/8″ / 1/2″-BSP / NPT and special Threads
  • Ingress Protection :IP68
  • Execution :Dry / Fillable / Filled
  • Electric Contact :Magnetic / Inductive Contacts, NO, NC, NO NC, NC NO, NO NO, NC NC
  • Bourdon Tube & Socket :SS316L / Monel -TIG WELDING
  • Case & Bezel :SS304 / 316
