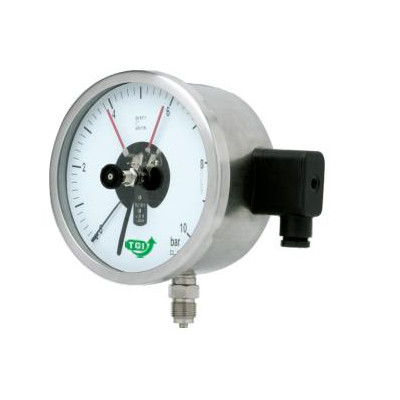

ALL SS PG, ELECTRIC CONTACT TYPE HI-VERSION CASE MODEL-TGI07
- Dial Size :DN100 / DN150
- Range :-1 to 0 , 0-1 to 0-1600 Bar
- Accuracy :±1% / CL 1.0 – Reference Standard : EN837-1
- Mounting :Bottom / Lower Back with standard safety glass window
- Process Connection :1/4″ / 3/8″ / 1/2″-BSP / NPT and special Threads
- Ingress Protection :IP65
- Execution :Dry / Fillable
- Electric Contact :Magnetic / Inductive Contacts, NO / NC, NO NO, NC NC
- Bourdon Tube & Socket :SS316L -TIG WELDING
- Welded Case & Bezel :SS304 / 316
