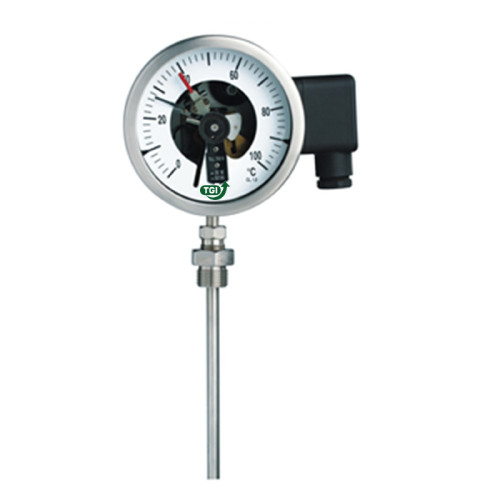

ELECTRIC CONTACT TEMPERATURE GAUGES -STD. GLASS MODEL- TGI52
- Dial Size :DN100 / DN150, Window- standard Glass
- Temp. Range :-100 to 650°C
- Accuracy :± CL 1
- Standard :EN13190
- Mounting :Bottom/Center Back/Every angle Clamp with External Zero Adjustment
- Process Connection :1/4″,/3/8″,/1/2″-BSP / NPT, Option with Anti Vibration spring
- Ingress Protection :IP65 , Hermetically Sealed Encloser
- Execution :Dry / Fillable
- Electric Contact :Magnetic / Inductive Contacts, NO,NC,SPST,DPDT,NONC
- Sensing Element :Bourdon Tube with Temperature Compensation, H.V
- Case & Bezel :SS304/316, – Stem / Probe TIG welded with Case
