• Features :Fixed/Field Adjustable (External)/Differential Adjustment-External/Internal
  • Accuracy :± 1% / CL 1,
  • Repeatability :±0.5% /CL 0.5, On Raising /On Falling
  • Mounting :Bottom / Back Panel / 2″pipe Mounting Bracket

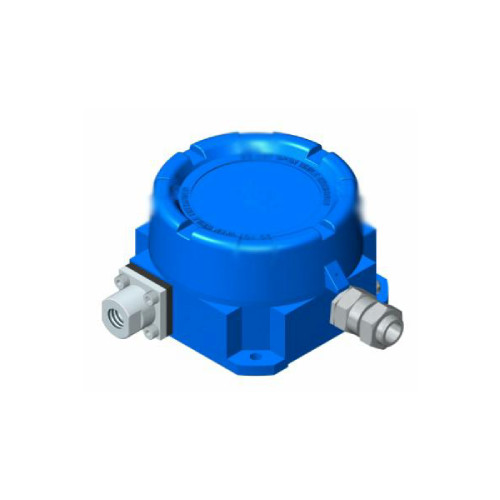

  • Enclosure :Die Cast Aluminium – Flame Proof- IIA IIB IIC T6 ZONE 1 & 2
  • Wetted Parts :Bottom Body, Piston
  • MOC :SS316/ Monel / Inconel / PTFE
  • Process Connection :1/4″ BSP(F) – Standard
  • Options :3/8″,/1/2″-BSP / NPT
  • Max. Process Temp. :150°C
  • Ambient Temp. :-20 .. 65°C
  • Switch Type & Rating :1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC -Standard : Micro Switch with silver contact
  • Micro Switch :Low / High Dead Band, Hermetically /Environment Sealed /Gold Contact
  • Ranges :Above 25bar …… 250 bar
  • Differential :Fixed / Adjustable
  • Accessories :Mounting Bracket with bolt – Steel Plated /2” Pipe mounting bracket, Diaphragm Seal, Syphon, Snubber, Cooling Tower
  • Cable Entry :3/4 ET / 1/2” NPT Double Compression Gland- Flame Proof – Brass/SS
