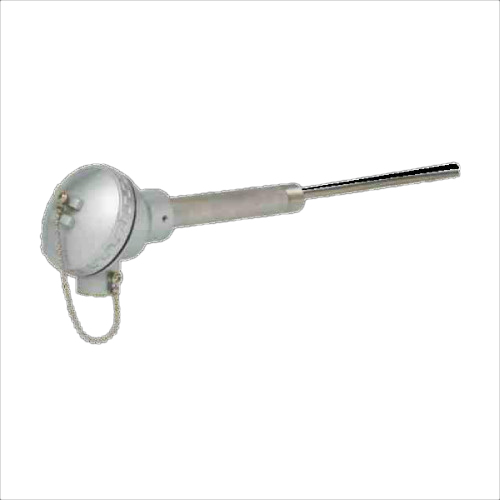

RTD – NIPPLE EXTENTION TYPE MODEL- TGI31-01
- Element :PT-100 /500 / 1000, Class A / B
- Range :-200 …. 400 / 600°C
- Wire Combination :Simplex / Duplex , 2 Wire/3 Wire/4Wire
- Accuracy :IEC-751 I DIN 43760
- Sheath Material :SS316 /SS316L
- Sheath Diameter :3 / 5 / 6 / 8 /10 mm
- Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof /Atex.
- Terminal Head Material :Die cast Aluminium / SS304 /SS316
- Cable Entry :3/4″ ET/NPT, 1/2″ NPT , M20
- Head Extension :Nipple Extension assembly in ASTM A105 ( plated ) /SS304 /SS316
- Head Extension Length :50 mm upto 250 mm
- Immersion Length :50 mm upto 10000 mm
- Process Connection :1/2″ / 3/4″ – BSP / NPT, M20 (M)
- Others :With Transmitter 4…20 Ma output,Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification
