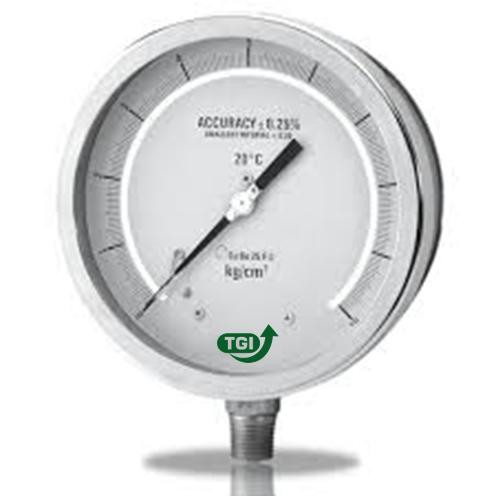

- Dial Size :DN150 / DN250 / DN300
- Range :-1 to 0 , 0-1 to 0-1600 Bar, Reference Standard : EN837-1
- Accuracy :±0.25% / CL 0.25
- Movement :Jewel Bearing
- Mounting :Bottom / Lower Back
- Process Connection :1/2″-BSP / NPT
- Ingress Protection :IP68
- Execution :Dry
- Bourdon Tube & Socket :Berrlium Copper & SS316L / Copper alloy
- Case & Bezel :SS304 / Steel Case Powder coated
- Note :Dial with anti parallax mirror band, Knife Edge Micro Adju. Pointer
