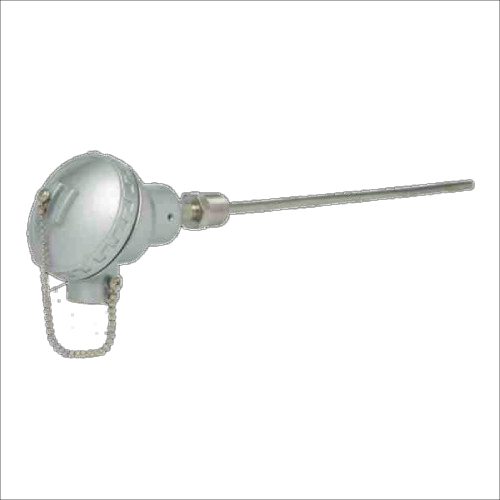

THERMOCOUPLE FIXED THREADED TYPE MODEL- TGI32-03

• Element :Type-K / J / T / N /E
• Accuracy :Standard to IEC 584 & ANSI MC96.1
• No. of Sensors :Simplex / Duplex
• Hot Junction :Ungrounded / Grounded
• Sheath Material :SS316 /SS316L / SS310 / INCONEL 600/SS446
• Sheath Diameter :3 / 5 / 6 / 8 mm
• Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof / Atex
• Terminal Head Material :Die cast ALUMINIUM / SS304 /SS316
• Cable Entry :3/4″ ET/NPT, 1/2″ NPT , M20
• Head Extension :Fixed Connection
• Immersion :50 mm upto 1000 mm
• Process Connection :1/2″ / 3/4″ – BSP / NPT, M20
• Others :With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification.
