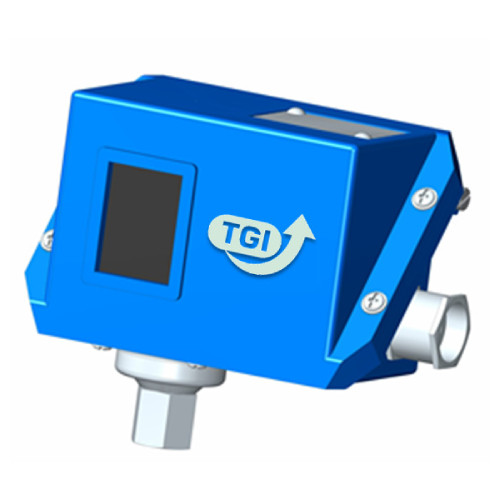

WEATHERPROOF PRESSURE SWITCH LOW PRESSURE SWITCH MODEL-TGI44-01

• Features :Fixed/Field Adjustable(External) / Differential Adjus.- External / Internal
• Accuracy :± 1% / CL 1
• Repeatability :±0.5% /CL 0.5, On Raising /On Falling
• Mounting :Bottom / Back Panel / 2″pipe Mounting Bracket
• Enclosure :Die Cast Aluminium -Wheather Proof – IP68
• Wetted Parts :Bottom Body , Diaphragm
• MOC :SS316/ Monel / Inconel / PTFE
• Process Connection :1/4″ BSP(F)
• Options :3/8″, /1/2″-BSP / NPT
• Max. Process Temp. :150°C
• Ambient Temp. :-20 .. 65°C
• Switch Type & Rating :1SPDT,2SPDT,DPDT, 5A / 250 VAC / 0.2A 24VDC Standard -Micro Switch with silver Contact.
• Micro Switch :Low/High Dead Band, Hermetically/Environment Sealed/Gold Contact
• Ranges :10mbar …..25 bar , -1…. 400mbar
• Differential :2mbar ….. 6 Bar
• Accessories :Mounting Bracket with bolt – Steel Plated /2” Pipe mounting bracket
• Cable Entry :PG13.5 (std)
• Options :3/4 ET / 1/2” NPT / DIN Conn/ 4pin / 7pin connectors Single / Double Compression Gland- Weather proof – Brass / SS
