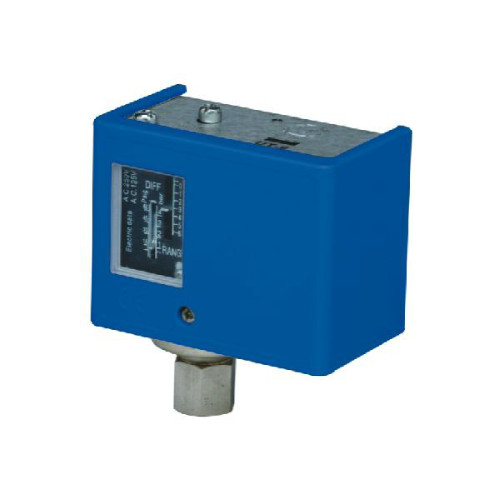

COMMERCIAL PRESSURE SWITCH GENERAL PURPOSE MODEL- TGI43-01
- Features :Field Adjustable /Auto Reset / CE Complied / Differential Adjust.
- Accuracy :± 1% / CL 1
- Repeatability :±1%
- Mounting :Bottom / Back Panel
- Enclosure :Steel Body( Plated with Plastic Cover )
- Sensing Element :PB Bellow
- Process Connection :1/4″ BSP (F),
- Options :3/8″,/1/2″-BSP / NPT
- Max. Process Temp. :100°C
- Ambient Temp. :-10 .. 60°C
- Switch Type & Rating :1SPDT , 5A / 220 VAC/10A 24VDC – Micro Switch
- Ranges :3 …… 30 bar
- Differential :1.5 ….. 12 Bar
- Accessories :Mounting Bracket with bolt – Steel Plated
