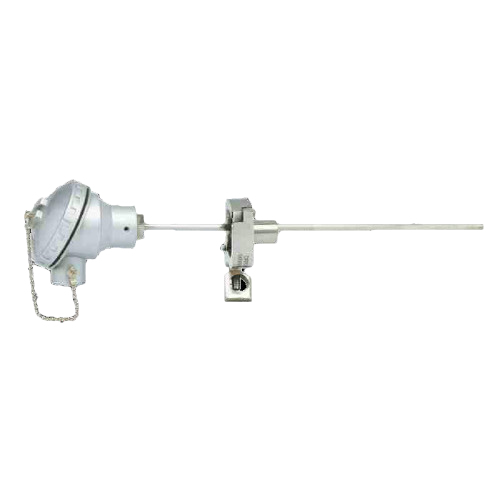

RTD ASSEMBLY WITH TRI CLOVER CONNECTION MODEL- TGI31-12

• Element :PT-100 / 500 / 1000 , Class A / B
• Range :-200 …. 400 / 600°C
• Wire Combination :Simplex / Duplex , 2 Wire / 3 Wire / 4Wire
• Accuracy :IEC-751 / DIN 43760
• Sheath Material :SS316 /SS316L / SS310
• Sheath Diameter :3 / 5 / 6 / 8 mm
• Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof
• Terminal Head Material :Die cast Alumi / SS304 /SS316
• Cable Entry :3/4″ ET/NPT, 1/2″ NPT, M20
• Head Extension :Adjustable Connection
• Immersion Length :50 mm upto 1000 mm
• Process Connection :TRI CLAMP -1″ /1.5″/ 2″ /2.5”
• Others :With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland
